Irrigation Products

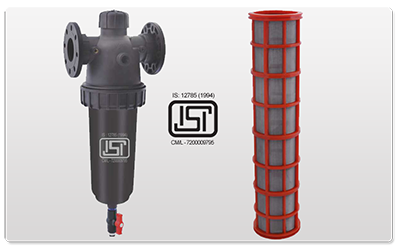

Description

Efficiently removes impurities such as hard inorganic particulates such as sand, trash, scale, including Trash, sand, silt, and other contaminants like algae, clog drip emitters and micro-sprinklers, helps increase efficiency of valves operation and results in overall significant increase in system efficiency leading to a excellent system performance.

GAJANAND Screen Type Filters are available in standard aperture size of 120 micron. Approved by BIS as per IS:12975-1994 for sizes from 2”, 2½” & 3” with flow rates from 30 m3/h, 40 m3/h & 50 m3/h.

Features

- Approved by BIS as per IS:12975-1994
- Manufactured from special Engineering plastic to provide sturdiness for rugged use resistance.
- It is built from corrosive and chemical resistant material so it has very high chemical and weather resistance.
- Scientifically designed to withstand wide fluctuations in pressures.
- Pressure drop at Maximum operating water flow of 72 m3/hour, is only 0.25 kg/cm2.
- Available in standard aperture size of filter is 120 micron.
- Also available in other aperture sizes if required.
- Males Threaded BSPT Standard end connections are available.
- Have wide range of filters to select from.

MODEL NO.	GI-SF50	GISF65	GISF80
Size	2”	2 ½”	3”
Maximum Pressure	8 kg/cm2	8 kg/cm2	8 kg/cm2
Flow Rate Range	20-35m3/h	35-45m3/h	40-50m3/h
Clean Pressure Drop	0.25Kg.cm2	0.25Kg.cm2	0.5 Kg.cm2

Advantages

- Built from engineering plastic to last long in hot and dry climate
- UV resistivity protects from Sunlight
- Non-corrosive and Rust proof built
- Weather Resistant
- Simple efficient Design
- No moving parts
- Zero Maintenance – Low Maintenance Cost
- Cost Effective Solution to Farmers
- Easy to handle, install because of its small size and lightweight design

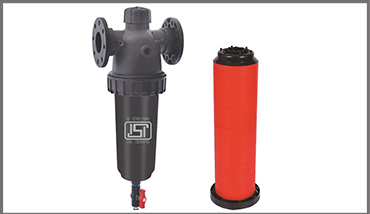

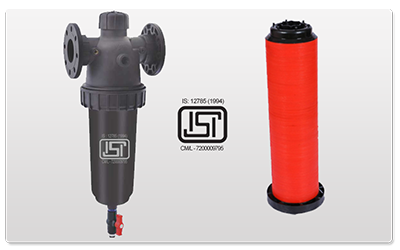

Description

Intricate disc design of having sinusoidal patterns on both the sizes enables to filter out the impurity of sizes upto 120 microns. Both organic and inorganic impurities can be removed easily owing to the larger area of filtration provided due to dual side disc design.

Robustly built with chemical resistant material; built to provide efficient and effective performance that requires low maintenance costs.

Design Features

- Each Disc has a unique design of sinusoidal pattern on both the sides, to enable maximum filtration.
- This design enables a larger filtration area, hence larger filtration area means less frequent cleaning, thus lowers overall maintenance costs.
- This design helps to give a longer life to the filter.

Features

- Size range: 2”, 2 ½”, 3”
- Mesh Size: 120 mesh/130 micron
- Maximum flow without pressure drop – 45-55 m3/hour

MODEL NO.	GI-050	GI-065	GI-080
Size	2”	2 ½”	3”
Maximum Working Pressure	8 kg/cm2	8 kg/cm2	8 kg/cm2
Flow Rate Recommended	35m3/h	45m3/h	50m3/h
Flow Rate Range	20-35m3/h	35-45m3/h	40-50m3/h
Surface Area of Filtration	1200cm2	1600cm2	1600cm2

Advantages

- Efficient Design enabling larger filtration area.
- Low Maintenance Cost
- Built from engineering plastic to last long in hot and dry climate
- UV resistivity protects from Sunlight
- Higher Chemical resistance - Non-corrosive and Rust proof built
- Weather Resistant
- No moving parts
- Zero Maintenance
- Cost Effective Solution to Farmers
- Easy to handle, install because of its small size and lightweight design

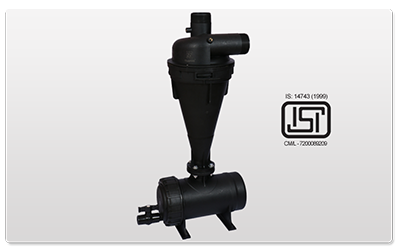

Description

GAJANAND HYDROCYCLONE is a mechanical device designed to reduce or increase the concentration of a dispersed phase, liquid by classifying, separating or sorting sand particles from a liquid suspension based on the ratio of their centripetal force to fluid resistance.

Specifications

Size (Inch/mm):	2 ½ / (65)	3 /(75)
Nominal Operation Pressure (kg/cm2):	6.0	6.0
Maximum ALLOWABLE Pressure drop (kg/ cm2):	0.8	0.8

- Maximum Recommended Working Pressure: 120 psi
- Recommended Head loss for Effective Operation: 3 – 8 psi
- Water Inlet and Outlet: Horizontal and Vertical
- Hydrocyclone End Connections: Thread, Flange and Groove
- Sedimentation Tank Connections: Thread – 2″ to 3″ Sizes Rubber Insert Included
- Material of Construction:

NO.	Description	Materials
1	Upper Filter Housing	GFPP
2	Lower Filter Housing	GFPP
3	Fixed Lock	GFPP
4	Fixed Locking pin	GFPP
5	O Ring (Upper)	EPDM
6	O Ring (Lower)	EPDM
7	Neck	GFPP
8	Nuts	SS
9	O Ring	EPDM
10	Flush Pipe	GFPP
11	Flush Pipe O Ring	EPDM
12	Gauge Ports Seal	LTB-3/4

Features & Benefits

- Velocity is accelerated due to the Conical design of the Hydrocyclone filter thereby increasing the centripetal force and maximizing separation.
- GAJANAND HYDROCYCLONE FILTERS have no moving parts and hence are easy to use, operate and handle.
- Requires low maintenance.
- During separation process head-loss does not occur.
- Provision of specialize neck design with fibreglass reinforcement with increase thickness near the neck region to protect from wear and tear occurring due to continuous separation process.
- To reduce frequent removal of sludge, large sedimentation tank can be used.
- Polypropylene material and fibre glass reinforcement increase the durability the life.
MODEL NO. GI-050 GI-065 GI-080 Size 2” 2 ½” 3” Maximum Working Pressure 8 kg/cm2 8 kg/cm2 8 kg/cm2 Flow Rate Recommended 35m3/h 45m3/h 50m3/h Flow Rate Range 20-35m3/h 35-45m3/h 40-50m3/h Surface Area of Filtration 1200cm2 1600cm2 1600cm2

Advantages

- High Efficiency
- Uniform flow rate
- Cost Efficient
- UV Resistivity – protects from sunlight
- Non-corrosive and rust proof built
- Weather resistant
- Simple efficient design
- No moving parts
- Zero maintenance
- Highly efficient performance under low/high/working pressure
- Easy to handle Easy to install

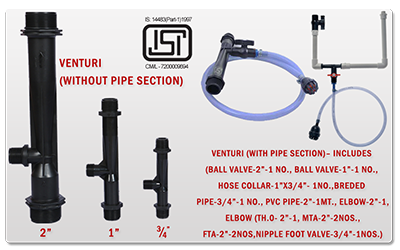

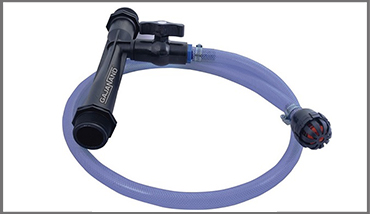

Description

Venturi Filter helps to prevent suction of leaves, or large particles thus preventing drop in pressures in the pipeline and occurrence of serious damage.

Features

- Designed to filter out dirt, twigs or harmful substances by venture suction
- Reliable and robustly built
- Designed for simple installation and maintenance
- Corrosion resistant highest quality materials

Applications

- Drip Irrigation Systems
- Water Supply Systems
- Landscaping
- Filter Stations
- Green Houses
